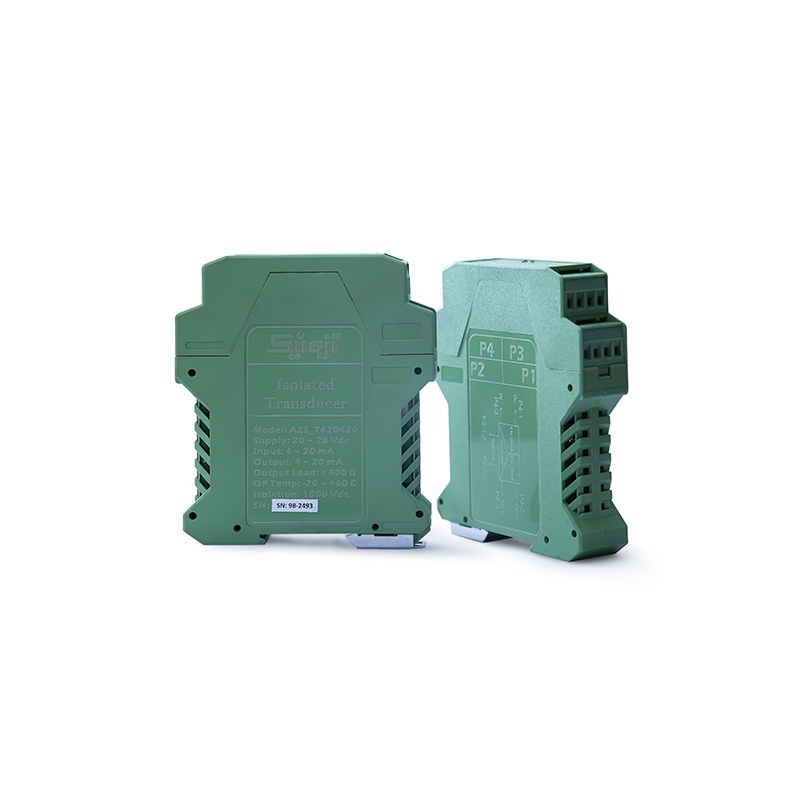

Product Introduction
- Low-pass filter to reduce output ripple (suitable for use in rectifiers).
- Designed and optimized for use in cathodic protection rectifiers.
- Three fully isolated power loops.
- Signal paths, 4-20 mA loop path, and power supply are isolated from each other.
- The 4-20 mA output loop operates fully actively (no need for loop power supply).
- Pluggable connectors for ease of use.
- Dimensions: 100 mm length, 23 mm width, 115 mm depth.
- Ability to provide a transmitter calibration certificate from laboratories approved by the standardization authority.
