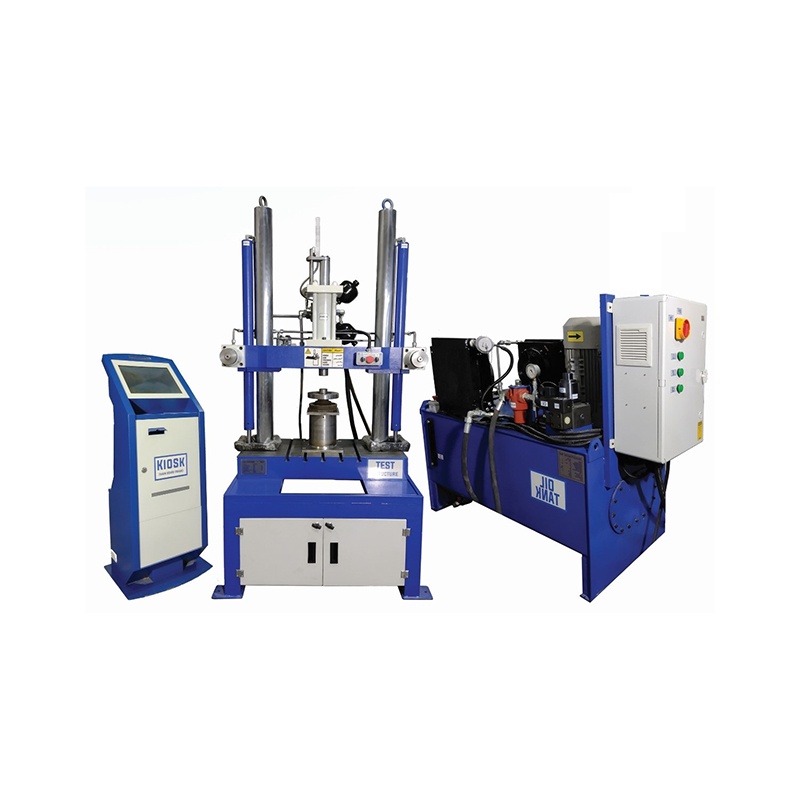

The axial fatigue testing machine model AZS-FTQ100 can apply cyclic axial forces (along the force application axis) up to 10 tons or 100 kilonewtons. This device is suitable for cyclic and fatigue tensile and compression tests on various plastic and rubber materials, as well as rubber-metal composite parts (e.g., shock absorbers) requiring speed and precision in measurements.
Additionally, this device can be used for testing finished products such as polymer and rubber components used in automotive applications, performance tests, and cyclic load tests on products like packaging containers, cartons, four-liter and twenty-liter containers, oil and grease containers, escalators, ladders, etc.
The device can load and stretch various materials up to 120 mm (including the load cell and standard grips). The total travel distance of the device without using the load cell and grips is up to 1230 mm.
The linear actuator movement speed is controllable at 100 mm/second, and thanks to the servo-hydraulic mechanism (hydraulic actuator with servo-hydraulic control system), the speed remains constant across the entire range of motion and all forces.
The device’s software can perform tests with a configurable number of cycles and force application shapes: square, triangular, or sinusoidal.
With this device, you can use various standard grips and fixtures or request custom grips and fixtures through the "Contact Us" page.
