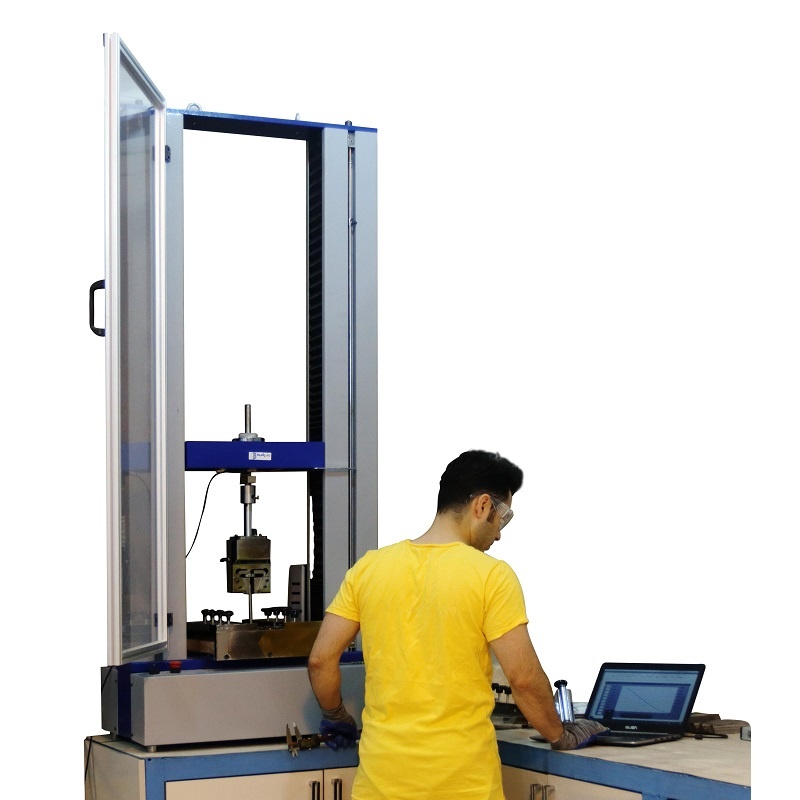

The dual-column tensile and compression testing machine model AZS-TNS50 can apply a force of up to 5 tons or 50 kilonewtons. This device is suitable for tensile testing of various plastic and rubber materials, pipes and fittings, and dumbbell-shaped specimens requiring speed and precision in measurements.
Additionally, this device can be used for testing finished products such as polymer and rubber components used in automotive applications, assembly and disassembly tests, and load tests on products like packaging containers, cartons, four-liter and twenty-liter containers, and oil and grease containers. Other applications include tests for polymer pipes and fittings (such as tensile tests, fitting pull-out tests, ring stiffness tests, ring flexibility tests, etc.).
In general, this device can perform various tensile and compression tests within a force range of up to 5 tons or 50 kilonewtons.
The device can stretch various materials up to 840 mm (including the load cell and standard grips). The total travel distance of the device without using the load cell and grips is up to 1480 mm.
The grip movement speed is controllable in the range of 0.1 to 500 mm/min, and thanks to the servo-electric mechanism (ball screw and servo motor), the speed remains constant across the entire range of motion and all forces.
The device’s software can perform tests on up to 10 specimens during each test cycle.
With this device, you can use various standard grips and fixtures or request custom grips and fixtures through the "Contact Us" page.
