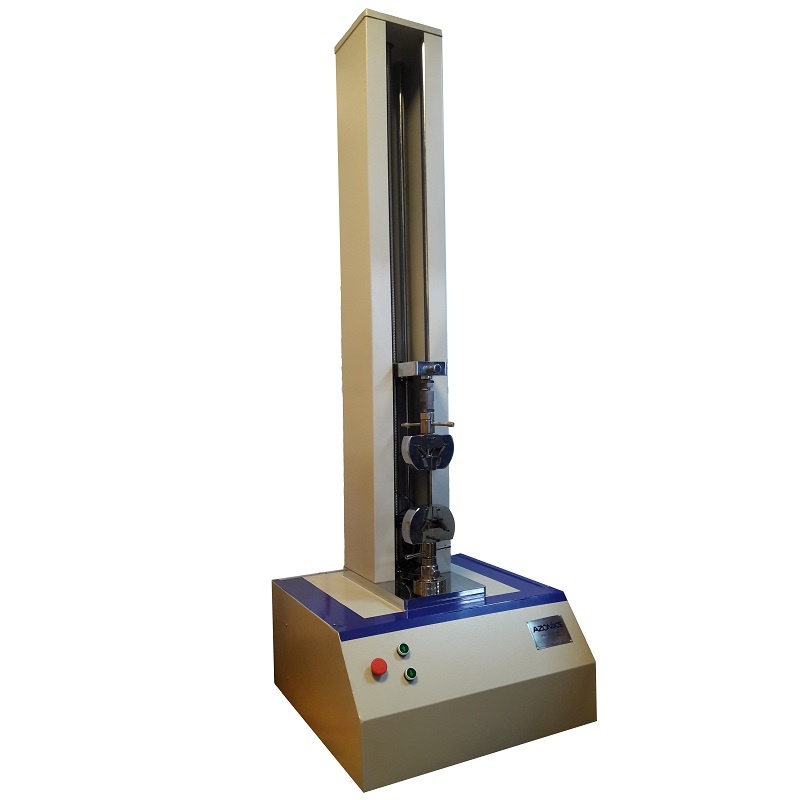

The single-column tensile testing machine model AZS-TNS05 can apply a force of up to 500 kg or 5 kilonewtons. This device is suitable for tensile testing of various plastic and rubber materials requiring speed and precision in measurements.
Additionally, this device can be used for testing finished products such as polymer and rubber components used in automotive applications, assembly and disassembly tests, and load tests on products like packaging containers, cartons, four-liter and twenty-liter containers, and oil and grease containers.
In general, this device can perform various tensile and compression tests within a force range of up to 500 kg or 5 kilonewtons.
The device can stretch various materials up to 900 mm (including the load cell and standard grips). The total travel distance of the device without using the load cell and grips is up to 1550 mm.
The grip movement speed is controllable in the range of 0.1 to 2000 mm/min, and thanks to the servo-electric mechanism (ball screw and servo motor), the speed remains constant across the entire range of motion and all forces.
The device’s software can perform tests on up to 10 specimens during each test cycle.
With this device, you can use various standard grips and fixtures or request custom grips and fixtures through the "Contact Us" page.
